Compact Solar Water Heater with Vacuum Tube Solar Collector
Detailed Product Description
| Capacity: | 155- 450L | Type: | Evacuated Tube |
| Circulation Type: | Direct/ Open Loop (Active) | Connection Type: | Direct- Plug |
| Heating System: | Thermosyphon (Passive) | Pressure: | Unpressurized |
| Inner Tank: | SUS304- 2B Stainless Steel, SUS304, SUS304- 2B Food Grade Type | Outer Tank: | Painted Steel-0.4mm/stainless SUSS304-BA Shiny 0.4mm |
| Application: | Bath, Domestic Hot Water, hot Water Use, washing, commercial Use | Frame: | Aluminum Alloy,Stainelss Steel/galvanized |
| Vacuum Tube: | 58mm/1800mm, 58*1800, Heat Pipes + 58 X 1800mm Three- target All Glass Tubes | Color: | As Request |
| Item: | Solar Hot Water Heater, Vacuum Tube Solar Collector, Compact Non Pressurized Solar Water Heater | Insulation Material: | Polyurethane |
| High Light: | passive solar water heater |

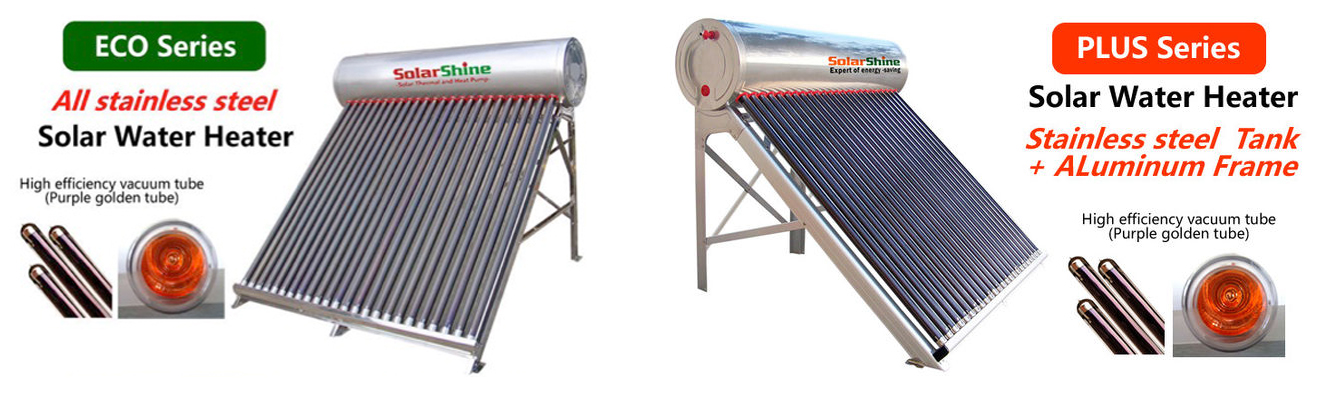

We supply 2 series of vacuum tube non-pressurized solar water heater: ECO Series and PLUS+ Series.
Eco evacuated tube non-pressurized solar water heater is design for very high cost- effective application.
PLUS+ Series is design for very high- class application, with larger water tank volume+ alum mounting frame, and thicker insulation layer.
|
SPECIFICATION DATA |
|||||||
|
SERIES |
ECO Series |
||||||
|
MODEL |
ECO-155L-20T |
ECO-185L-24T |
ECO-230L-30T |
ECO-275L-36T |
|||
|
Volume |
155L |
185L |
230L |
275L |
|||
|
Vacuum tube quantity |
20PCS |
24PCS |
30PCS |
36PCS |
|||
|
Solar vacuum tube |
ø58 x 1800mm/ high efficiency solar evacuated Tube, |
||||||
|
Inner tank material |
SUS304 2B food-grade stainless steel / wall thickness =0.41mm |
||||||
|
Outer tank material |
SUS304 2B food-grade stainless steel / wall thickness =0.31mm |
||||||
|
Water Tank ext size |
ø450x1625mm |
ø450x1925mm |
ø450x2375mm |
ø450x2825mm |
|||
|
Water tank inner size |
ø360x1525mm |
ø360x1825mm |
ø360x2225mm |
ø360x2725mm |
|||
|
Insulation / thickness |
High-density polyurethane foaming/45mm |
||||||
|
Frame material |
201# Stainless steel frame/ 30 x 60mm / 38o mounting degree |
||||||
|
Intelligent controller |
Full Automatic system controller |
||||||
|
Electric heater |
1.5KW |
1.5KW |
2KW |
2KW |
|||
|
|
|
|
|
|
|||
|
SERIES |
PLUS+ SERIES |
||||||
|
MODEL |
PLUS-173L-20T |
PLUS-205L-24T |
PLUS-260L-30T |
PLUS-310L-36T |
|||
|
Volume |
173L |
205L |
260L |
310L |
|||
|
Vacuum tube quantity |
20PCS |
24PCS |
30PCS |
36PCS |
|||
|
Solar vacuum tube |
ø58 x 1800mm/ high efficiency solar evacuated Tube, |
||||||
|
Inner tank material |
SUS304 2B food-grade stainless steel / wall thickness =0.41mm |
||||||
|
Outer tank material |
SUS304 2B food-grade stainless steel / wall thickness =0.31mm |
||||||
|
Water Tank ext size |
ø5000x1625mm |
ø500x1925mm |
ø500x2375mm |
ø500x2825mm |
|||
|
Water tank inner size |
ø380x1525mm |
ø380x1825mm |
ø380x2225mm |
ø380x2725mm |
|||
|
Insulation / thickness |
High-density polyurethane foaming/60mm |
||||||
|
Frame material |
Aluminum alloy / 100CM width / 38o mounting degree |
||||||
|
Intelligent controller |
Full Automatic system controller |
||||||
|
Electric heater |
1.5KW |
2KW |
2KW |
2KW |
|||
About the solar water tank:
The outer cover of the solar storage tank is made by SUS304 2B stainless steel, has super anti-corrosion function, suitable for anywhere, like seaside area of east south asia. The inner tank is made by SUS304 2B stainless steel too, its thickness is up to 0.41mm, which is very strong.
About the vacuum tubes:
The heat pipe vacuum tubes collectors are very high efficiency with three targets magnetron sputtering ion plating, they are all- glass double-tube co-axial structure. And they are designed to be very flexible, can be used to make the appropriate support and installation.
Features:
The solar water heater has high quality solar storage tank and high efficiency vacuum tubes, the system also have strong bracket, equipped with intelligent automatic system controller and back- up electric heater. You can choose ECO Series or PLUS+ Series according to your customers’ budget and local climate conditions.
For more details please refer to the specification of system, the Vacuum Tube Solar Collector for solar water heating system(solar collector) and the solar hot water storage tank(hot water storage tank).
Application cases:
